- Place of Origin: China
- Brand Name: Zhuchengdongshang
- Model Number: Processing customization

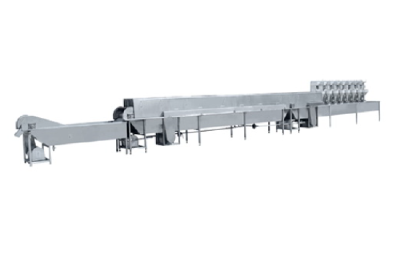

First, the equipment is mainly divided into seven parts (see photo)
(a), Rice-meat dumplings shaped slot
Tank is made of stainless steel 2mm/304, with hot water circulating pump as a meatball forward movement of power. At the end of the groove have 2 sets of reducer are drag scraper and conveying chain plate, make meatballs molding smooth neat transported to the cooking tank.
(two), cooking tank
The groove is used 2mm/304 made of stainless steel, forming meatballs cooking slot in the forward movement of the power: groups of scraper and the groove at the end of the conveying chain plate, through adjustment of the frequency converter to achieve scraper and plate chain operation speed, and process requirements to adapt.
(three), cooling tank
Port is provided with a water inlet, a water outlet filter, after the maturity of the meatball in cooling groove rapid cooling, beneficial to the tray and the lower part of the cold storage treatment.
(four) steam pipe and water circulation system
A symmetry group is the installation of steam pipe in the shaped groove and cooking tank, from the steam valve control flow to the tank water temperature maintained at a set temperature, the water circulation system in groove shape, the flow can be adjusted according to the adjustment of the size of output flow to reasonable meatballs movement speed.
(five) electrical control system
The machine adopts frequency converter as the power source, the scraper and the conveying chain plate can be operated, and the regulating range is greatly widened to meet the needs of the production process.
(six) thermal insulation measures
1, molding and cooking tank and the outer insulation cotton (sand), reduce the heat loss, energy saving steam.
At the end of 2, forming throughout the cooking tank upper cover and steam and gas curtain overflow
(seven) other ancillary facilities
1, screen cover: located in the steam pipe above the steam heating can not break Rice-meat dumplings;
2, discharge valve: located in the bottom of the groove, 1 ends of each;
3, waste collection tube under the cooking tank chain plate, the broken Rice-meat dumplings collected in the cylinder body, to keep clean environment.
